Products

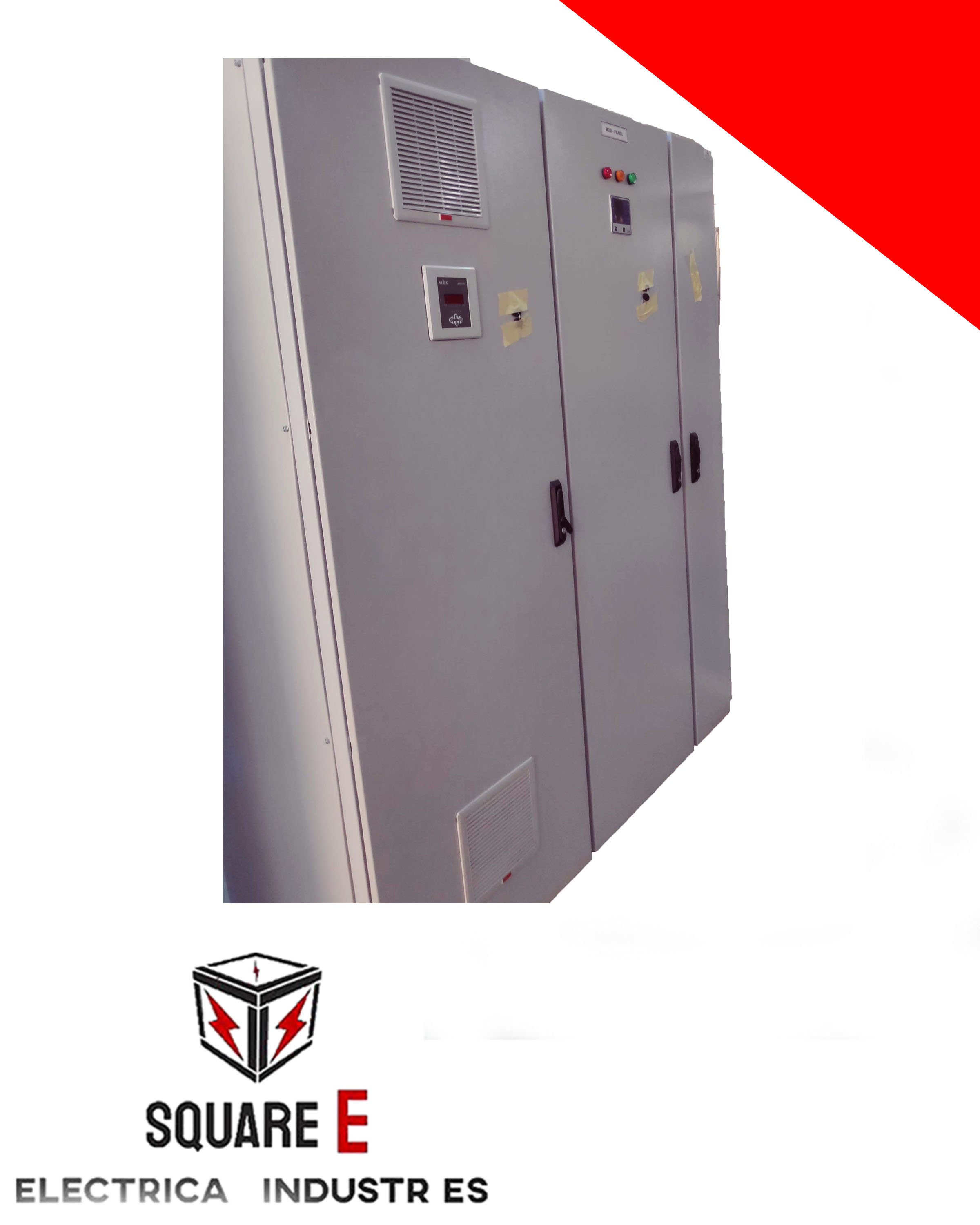

Low voltage

low voltage main distribution panels

  • Ratings up to 6300A - 690V — 100KA 1s Icw

  • High level of safety by design verification according to IEC 61439-2

  • Personnel and switchboard safety in case of internal arcing proven by means of testing according to IEC/TR 61641

  • 3 and 4 pole bus-bar system

  • Internal separation from form 1 up to form 4b (IEC 61439-2).

  • IP degree of protection up to IP54 (IEC 60529).

  • Indoor and outdoor applications

  • Modular switch board with variable  designs: Fixed withdrawable

Material

Enclosure is manufactured from sheet metal 2.0 mm and 2.5 mm.

Surface treatment

Powder coated or galvanized.

Variable feeder designs:

  1. Power Factor panels Automatic transfer switch panels​

  2. Synchronization panel

sub main

low voltage main distribution panels

  • framework for currents up to 630 A for different applications.

  • IP degree of protection IP42— IP54-IP65 (IEC60529)

  • All available in wall or floor or flush mounting.

  • Indoor and outdoor applications.

Material

Enclosure is manufactured from sheet metal 2.0 mm and 2.5 mm.

Surface treatment

Powder coated or galvanized.

control panels

low voltage main distribution panels

  • PLCs are often used in factories and industrial plants to control motors, pumps, lights  fans, circuit breakers  and other machinery

  • PLC Panel can monitor  any process and provide data wherever and however you need it

Surface treatment

  • From 6 line to 54 line

  • Incoming MCB or MCCB

  • Line panels or vertical panels

  • With bus-bar or without bus-bar

motor control

low voltage main distribution panels

  • PLCs are often used in factories and industrial plants to control motors, pumps, lights  fans, circuit breakers  and other machinery

  • PLC Panel can monitor  any process and provide data wherever and however you need it

distrubtion

low voltage main distribution panels

Types

  • Flush Mounting Distribution box (IP42).

  • Floor mounting Distribution box (IP54).

  • Wall mounting Distribution box (IP54).

  • Enclosures with different dimentions .

  • Metering cabinet.

Characteristics

  • From 6 line to 54 line.

  • Incoming MCB or MCCB.

  • Line panels or vertical panels.

  • With bus-bar or without bus-bar.

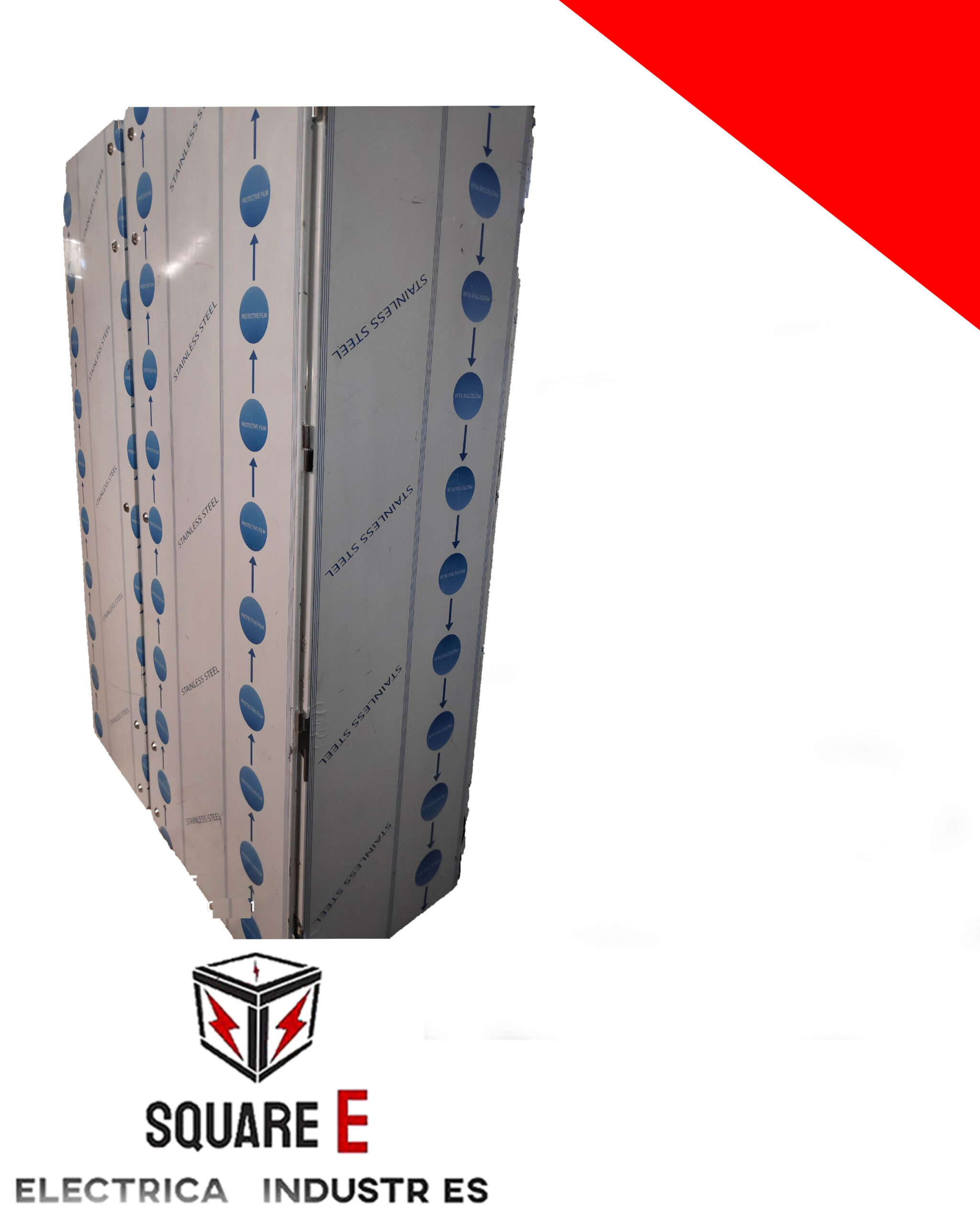

stainless

low voltage main distribution panels

  • SQUARE E is a pioneer in the manufacture of  stainless-steel panels in Egypt with the highest  quality and the best price.

  • Our experience in this field comes from the implementation of major projects in different market segments such as industrial, and oil & Gas

  • We specialized in stainless-steel custom-made products:

All types of stainless-steel formation (304/316/321) (MDBs, panels,

distribution boxes and different applications.)

  • Electrical distribution panels.

  • enclosures for different application.

  • Special solutions for emergency on sites.

Characteristics

  • panels up to IP66.

  • Thickness: 1mm-2.5mm.

  • Grade: 304/316/321 Stainless Steel.

  • Ratings up to 6300A - 690V — 100KA 1s Icw

  • Internal separation from form 1 up to form 4b (IEC 61439-2).

Cable

low voltage main distribution panels

  • Cable trays are made of either steel, aluminum

  • Available in six basic types :
